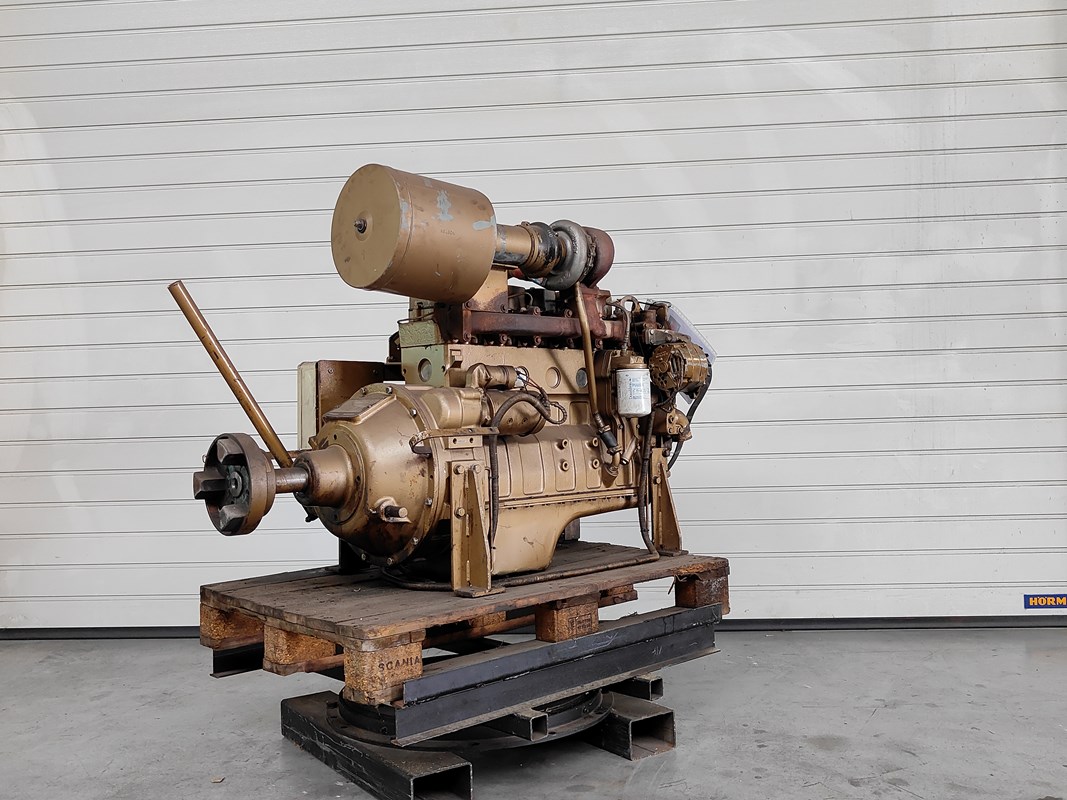

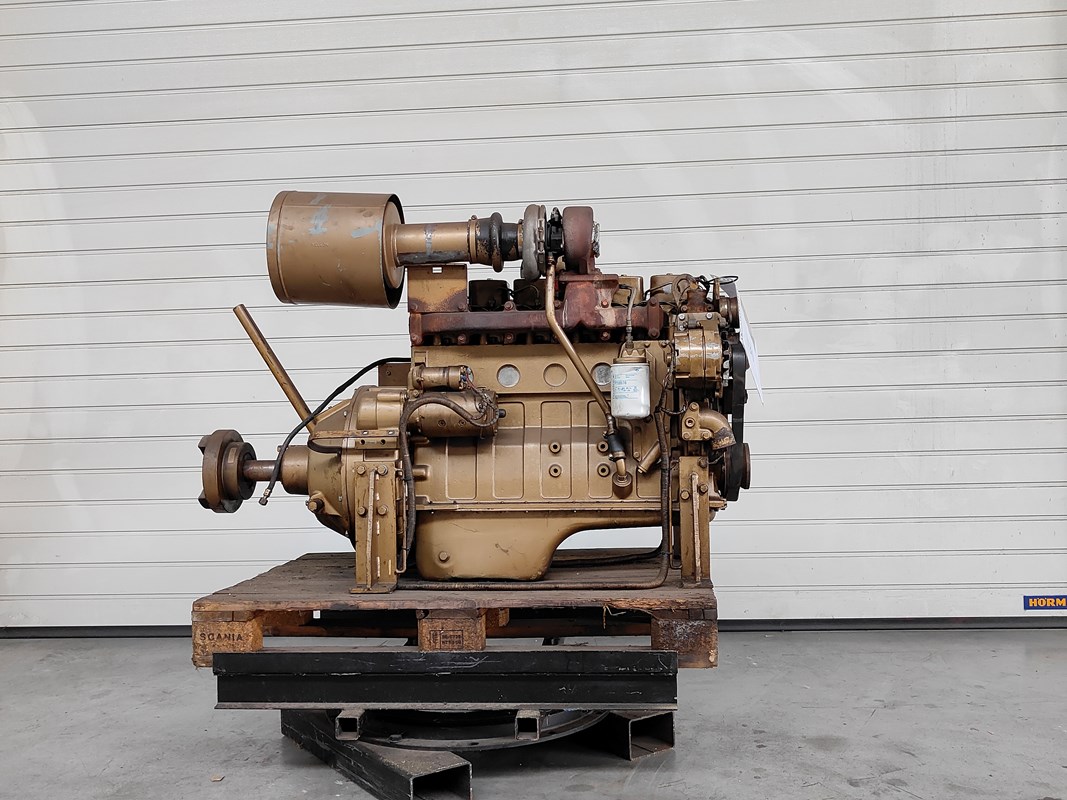

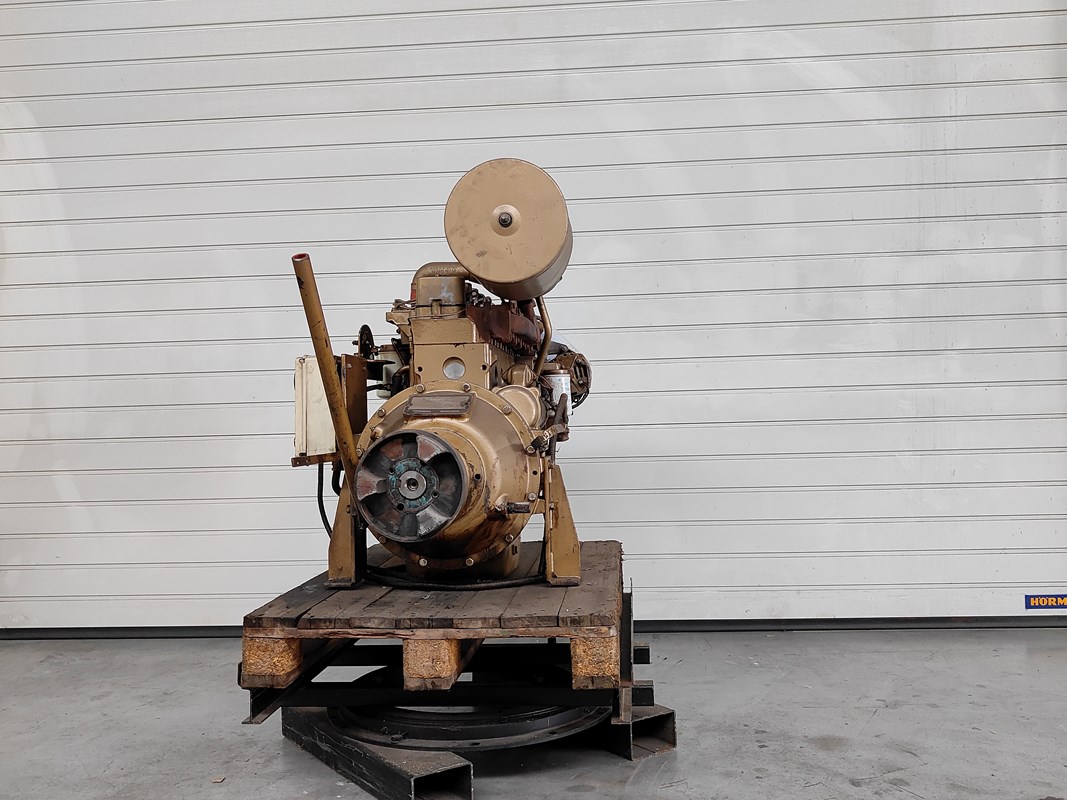

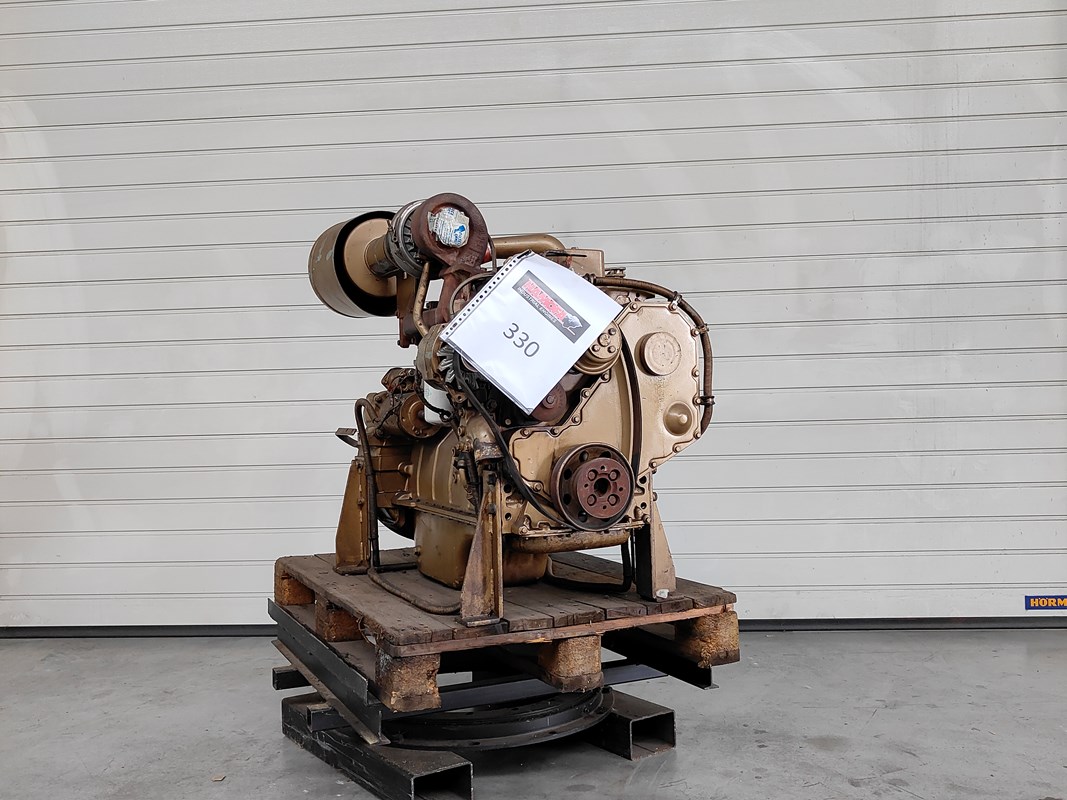

CUMMINS 6BT
Artikelnummer: 330-94327
Omschrijving: CUMMINS 6BT
Merk: CUMMINS
Type: 6BT
Status: Gebruikt
Toelichting: 6 cilinder
215 Pk
2500 rpm
Production Years:
1989 – 1998
Configuration:
Inline 6 cylinder
Displacement:
359 cubic inches, 5.9 liters
Bore x Stroke:
4.02" x 4.72"
Cylinder Head Material:
Cast iron
Engine Block Material:
Cast iron
Firing Order:
1-5-3-6-2-4
Compression Ratio:
17.0 : 1
Injection:
Direct Injection
• Bosch VE44 rotary injection pump (1989-1993)
• Bosch P7100 injection pump (1994-1998)
Aspiration:
Holset turbocharger, intercooler introduced mid-1991 model year
Valvetrain:
OHV, 2 valves per cylinder, solid lifter camshaft
Valve Lash (Clearance):
Exhaust Valves:
0.020" (must be checked with engine cold)
Intake Valves:
0.010" (must be checked with engine cold)
Weight:
Approx. 1,100 lbs dry
Oil Capacity:
12 quarts
Governed Speed:
2,700 rpm
Horsepower:
160 – 215 HP @ 2,500 rpm
Torque:
400 – 440 lb-ft @ 1,600 rpm
